Photo: the printed shelf holding the Pocket 3 battery handle, mini tripod and mic transmitterPhoto
SKÅDIS mounts / HS-SKD-004

SKÅDIS DJI Osmo Pocket 3 Holder

A SKÅDIS corner for the Osmo Pocket 3 Creator Combo: an upright camera dock with room for a USB-C cable from below, and a shelf for the battery handle, mini tripod, mic transmitter and wide-angle lens.

$3.99Print files · instant download · the parts list is free
See the free parts list

Digital download, nothing is shipped. STL + STEP + Bambu 3MF, an illustrated guide with real photos, a material guide and the BOM. Secure checkout by Stripe; download links appear right after payment. What's in the pack.

Mounts2 + fit ring
PrintPLA · no supports
Whole set4 h 44 min · 139 g

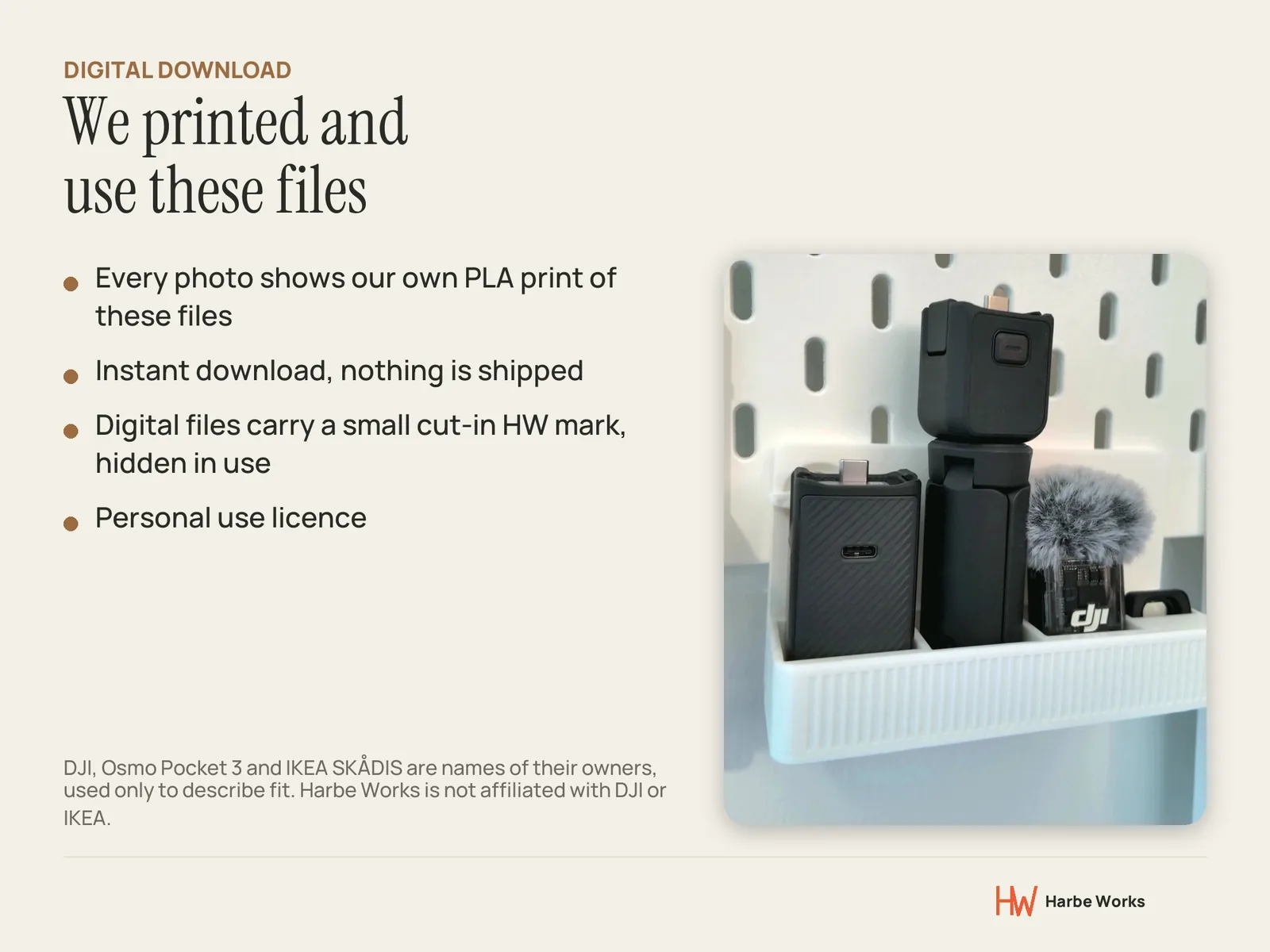

Fits the DJI Osmo Pocket 3 and its Creator Combo accessories (battery handle, mini tripod, Mic 2 transmitter, wide-angle lens), on an IKEA SKÅDIS pegboard. Photos show our own prints of these files. Anything we have not printed or checked is marked "not yet printed" below.

01 / Free parts list

See what you need before you buy.

Every printed part with its filament and time, plus anything you need that is not printed.

Parts list (PDF) or CSV for a spreadsheet

Print

Printed parts
PartQtyMaterialEach (estimate)
Pocket 3 Dockboard face down1PLA35 g · 1 h 10 min
Kit Shelffloor down1PLA89 g · 2 h 27 min
Pocket 3 Fit RingRecommended firstfloor down1PLA11 g · 24 min
Twist Keyflat4PLA1 g · 11 min

About 4 h 44 min and 139 g of PLA for the set (Bambu Studio estimate).

Not printed

Parts that are not printed
IKEA SKÅDIS pegboard (any size)Yes: Not included.1
USB-C cable (slim plug)Optional: Your own; only if you want to charge the camera in the dock.1
DJI Osmo Pocket 3 + accessoriesYour own: Not included.1

Ready-made plates

Bambu Studio plates in the pack
PlateOn itTimeFilament
Plate 1Pocket 3 Dock, Kit Shelf, Fit Ring, Twist Key ×43 h 47 min139 g

Bambu Studio estimates for an A1 with a 0.4 mm nozzle and 0.20 mm layers; plates pack parts together, so they differ a little from the per-part sums.

02 / The files

Get the files: $3.99.

One ZIP, v1.1.0. Personal, non-commercial licence.

$3.99Digital download · STL + STEP · instant

Secure checkout by Stripe. Your download links appear right after payment and work for 24 hours. Terms of sale · Refunds.

What's in the pack

  • STL of every part, already in print orientation (digital edition with a small cut-in HW mark)
  • STEP of every part, for remixing
  • Bambu Studio 3MF plates for the A1 (0.4 mm nozzle): PLA, 0.20 mm, no supports
  • Illustrated guide (PDF) with real photos of our prints: print settings, the Twist Key, mounting, troubleshooting, care
  • Material Guide (PDF): PLA vs PETG vs PCTG, colours and brands, grams and time per part, fit tolerances
  • Bill of materials (CSV + PDF), README, LICENSE, CHANGELOG

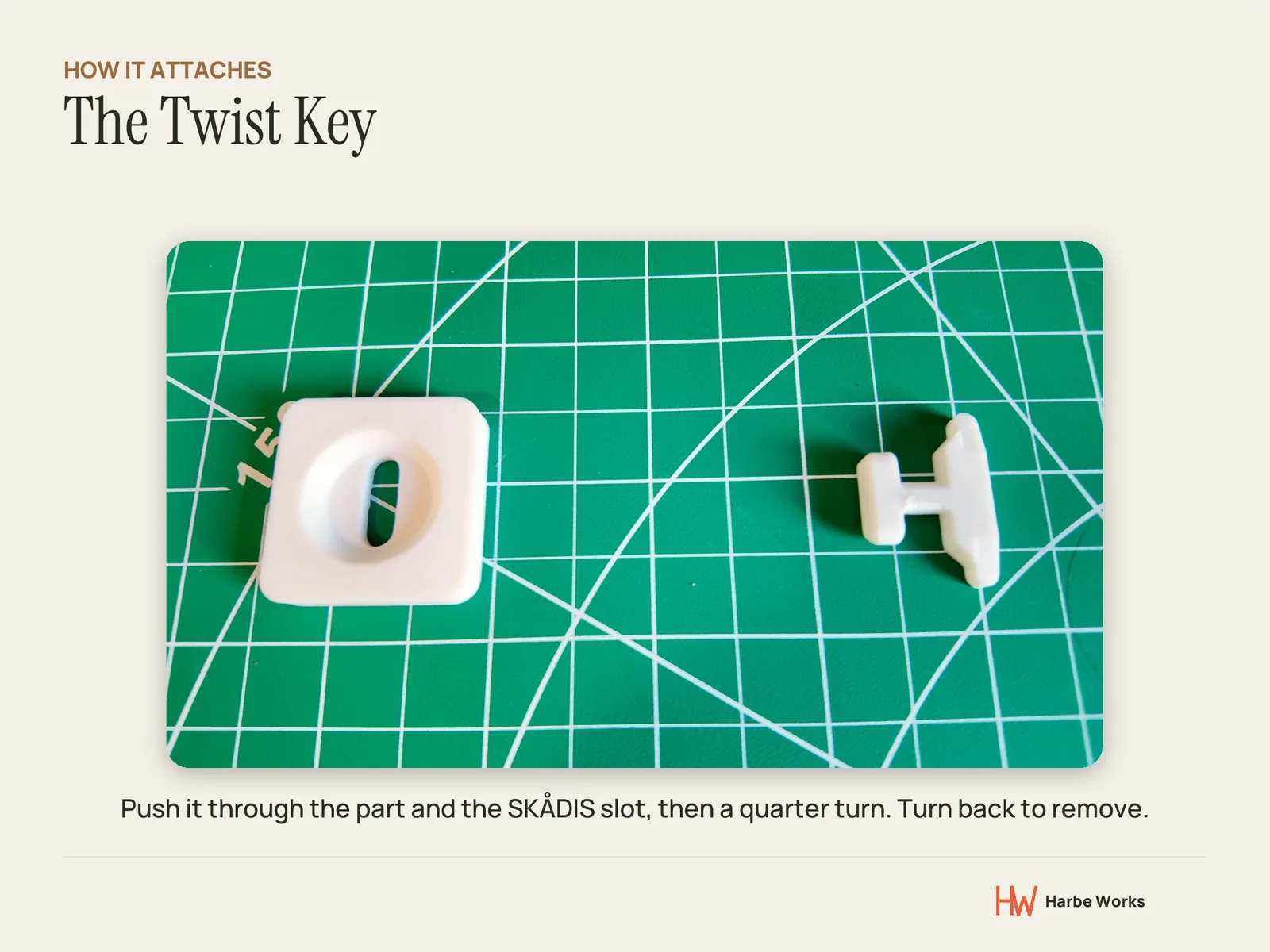

Mounting

  1. Hold the mount on the board with each socket over a SKÅDIS slot.
  2. Push a Twist Key, wings vertical, through the socket and the slot behind it.
  3. Turn it a quarter turn counter-clockwise until it stops. The bar locks behind the board and the shoulder wedges the mount tight.
  4. Turn it back to take the mount off. No tools, no glue.
03 / Print notes
  1. Print at 100 % in millimetres with X-Y hole and contour compensation at 0. Every part is already in print orientation: no supports.
  2. PLA is what we print and photograph. PETG and PCTG should work but are not tested by us (see the Material Guide).
  3. Print one Twist Key first (11 minutes) and try it on your board before the big parts.
  4. Turn on elephant-foot compensation: a flared first layer is the usual reason a key or device feels tight.
  5. Print the Pocket 3 Fit Ring (25 min) and drop your camera in before printing the dock.
  6. The dock is sized for a slim USB-C plug; a thin or right-angle cable helps.
04 / Honest status

What we verified.

Verified = shown by our own prints and photos, October 2026. Everything else is calculated from CAD and published sizes.

Verified with our prints

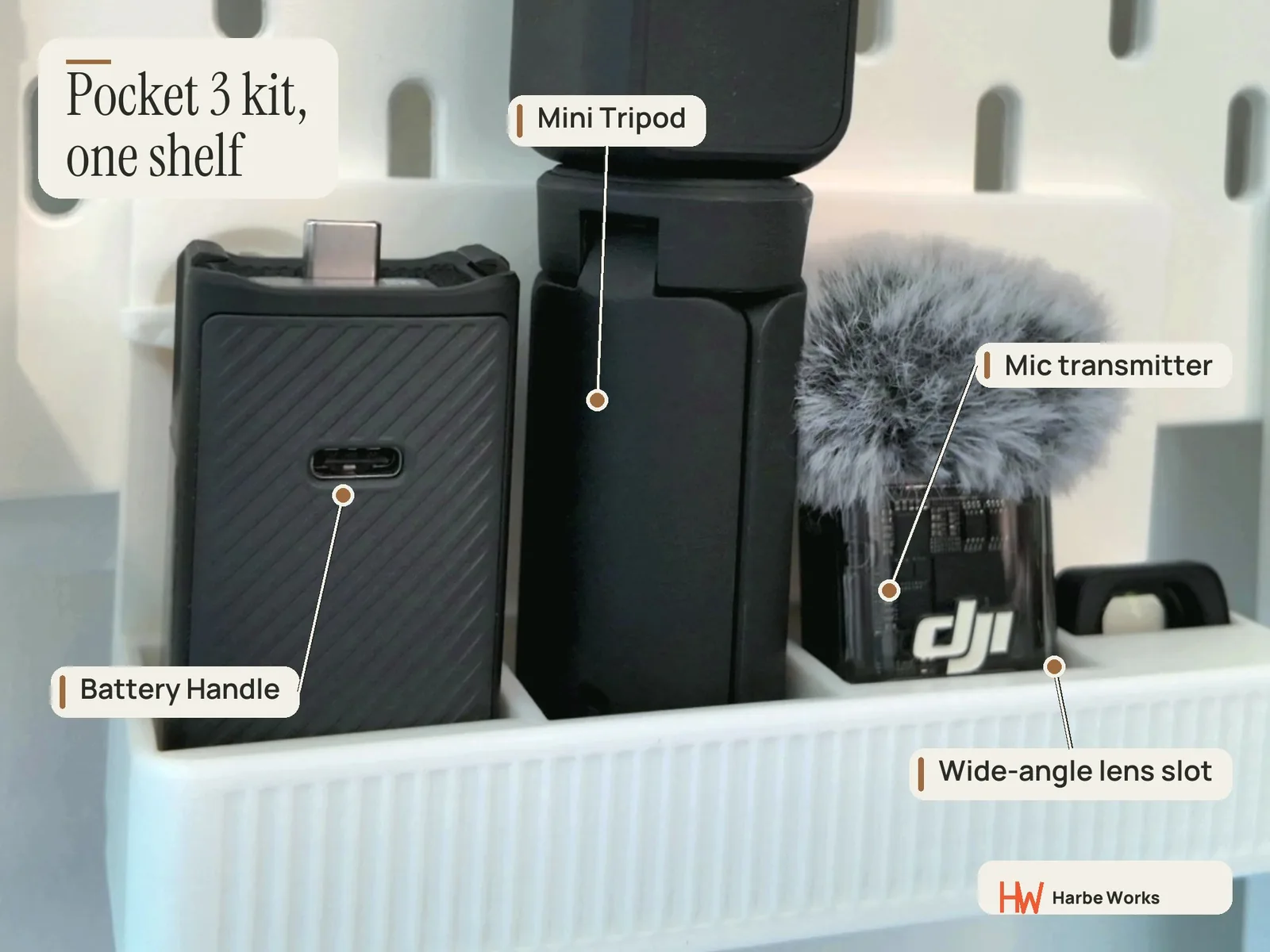

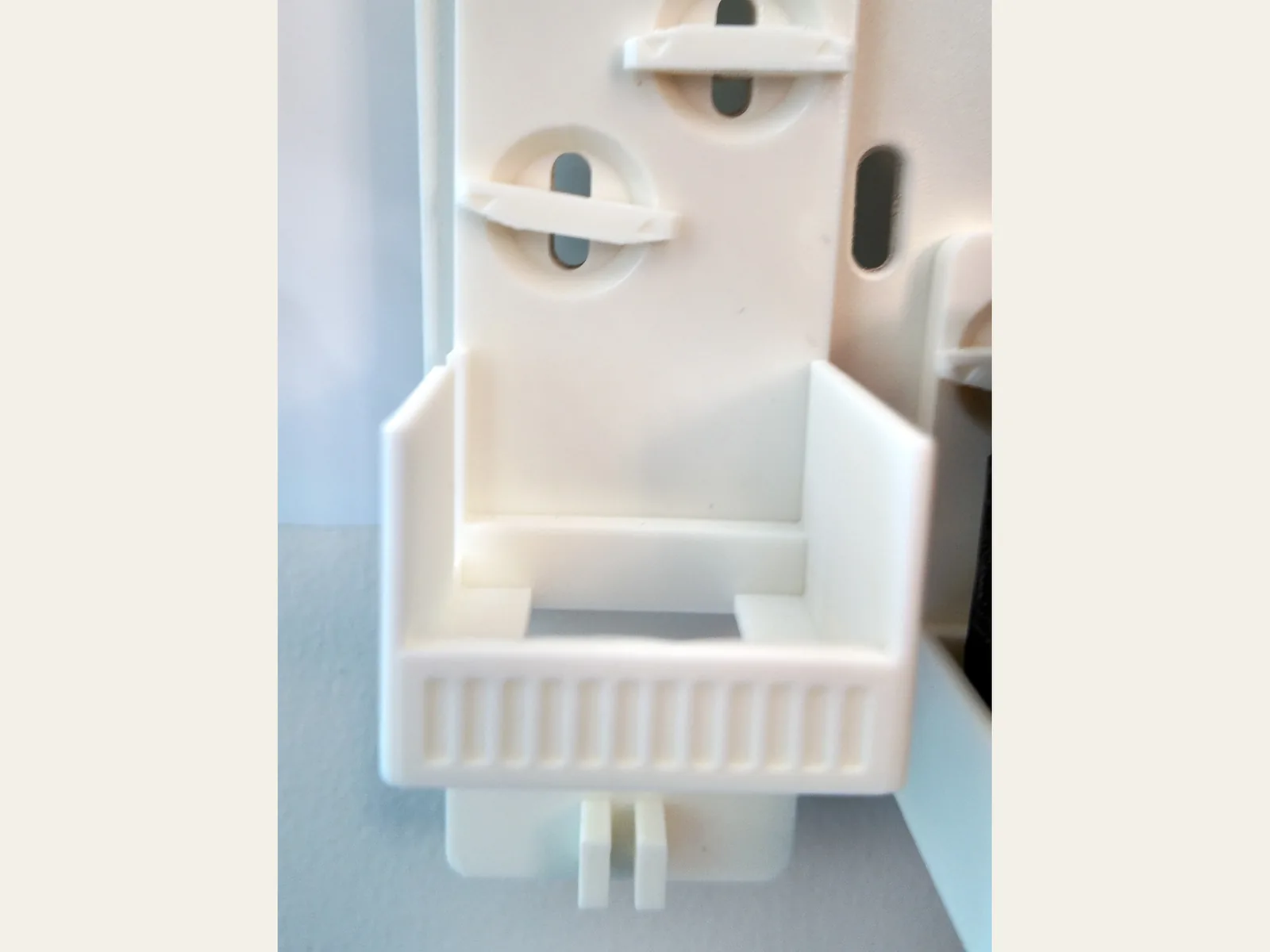

  • Dock and kit shelf printed in PLA from these files and hung on our own SKÅDIS board; the shelf holds our battery handle, folded mini tripod and Mic 2 transmitter (photo).

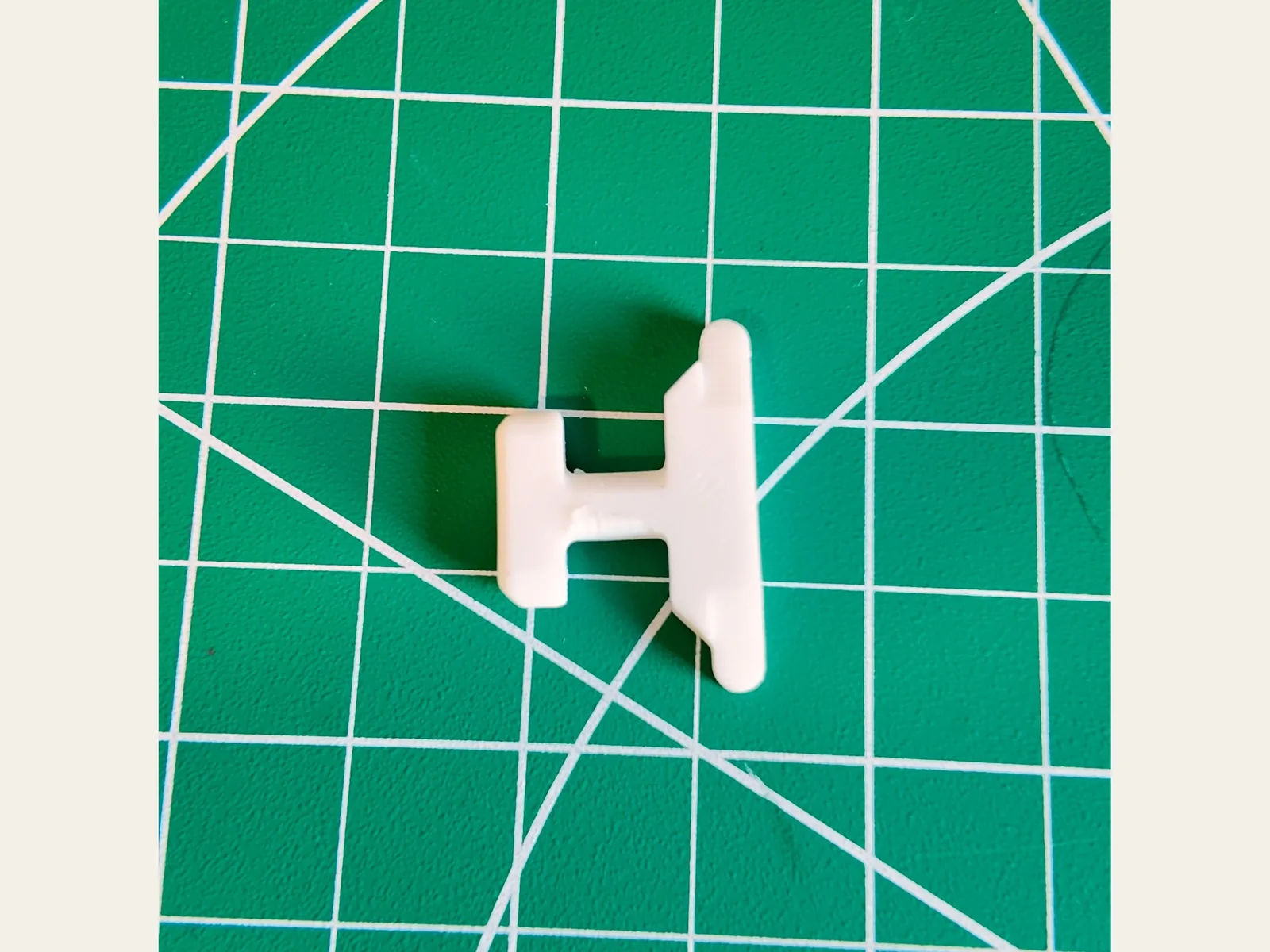

  • Twist Key: printed in PLA and used on our own SKÅDIS board; it locks in snugly with a quarter turn.

Calculated / not yet printed

  • The camera seated in the dock and charging over USB-C in place: designed from DJI's published size, not shown in our photos yet. Print the Fit Ring first.
  • The USB-C plug room is an estimate: check your cable's plug.
  • Load, drop and long-term creep tests: not done.
05 / Questions

Good questions.

Something else? Email help@harbeworks.com.

Is this a physical item?

No. It is a digital download: one ZIP with the print files and guides. Nothing is shipped. You need a 3D printer (or a print service).

Which printers does it work with?

Any FDM printer that prints PLA. The 3MF plates are set up for a Bambu Lab A1 with a 0.4 mm nozzle; on another printer use the STLs with the settings in the guide.

Do I need screws or tools?

No. Each mount hangs on IKEA SKÅDIS with our printed Twist Keys: push through, quarter turn, done.

Can I sell prints or share the files?

No: the licence is personal, non-commercial use. Please link people to this page instead. A printed version is in our Etsy shop.

What if a fit is off on my printer?

Email help@harbeworks.com with your printer, filament and a photo. The guide has a troubleshooting table, and fit tests are included where a device needs one.

Has the camera been tried in the dock?

Not in our photos yet: the dock is printed and hung, and its size comes from DJI's published dimensions. That is why the pack includes a 25-minute fit ring to try first.

06 / Licence

For you, with a few rules.

Personal, non-commercial use: print and use the mounts for yourself. Do not share, re-upload or sell the files or printed parts. Full text in LICENSE.txt in the ZIP.

DJI, Air 2S, RC-N1, Osmo Pocket 3 and Mic 2 are trademarks of SZ DJI Technology Co., Ltd., used only to describe fit. IKEA and SKÅDIS are trademarks of Inter IKEA Systems B.V. Harbe Works is independent and not affiliated with or endorsed by DJI or IKEA.
