Photo: a folded DJI Air 2S lying on the printed SKADIS sled on a pegboardPhoto
SKÅDIS mounts / HS-SKD-003

SKÅDIS DJI Air 2S Mount Set

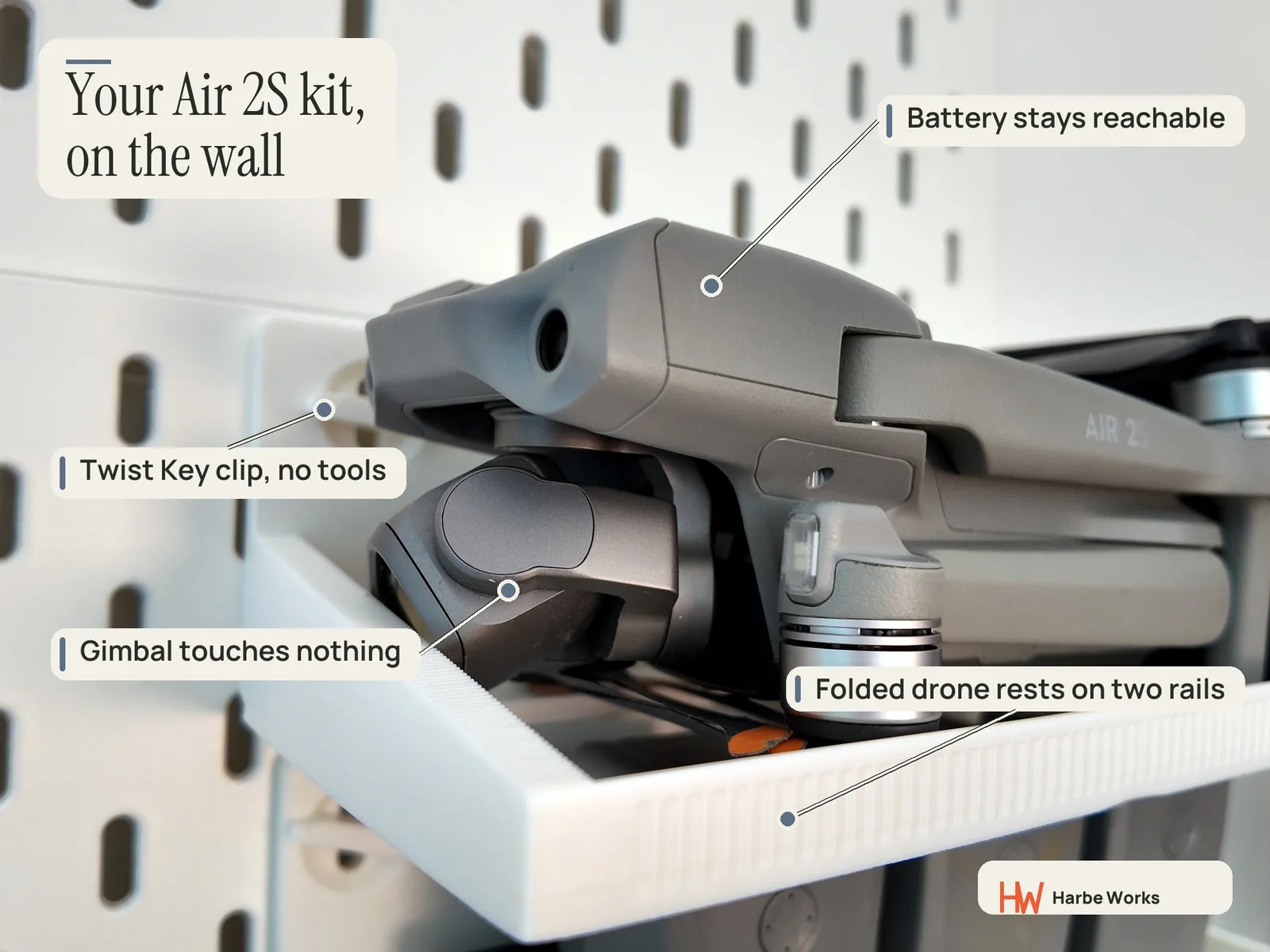

Three matching IKEA SKÅDIS mounts for a DJI Air 2S kit: the folded drone on a sled, the 3-battery charging hub in a dock, and the RC-N1 standing face-out. Printed and in use on our own board.

$4.99Print files · instant download · the parts list is free
See the free parts list

Digital download, nothing is shipped. STL + STEP + Bambu 3MF, an illustrated guide with real photos, a material guide and the BOM. Secure checkout by Stripe; download links appear right after payment. What's in the pack.

Mounts3 + fit coupon
PrintPLA · no supports
Whole set11 h 28 min · 395 g

Fits the DJI Air 2S (folded), DJI's flat 3-battery charging hub with Air 2S batteries, and the RC-N1 controller, on an IKEA SKÅDIS pegboard. Photos show our own prints of these files. Anything we have not printed or checked is marked "not yet printed" below.

01 / Free parts list

See what you need before you buy.

Every printed part with its filament and time, plus anything you need that is not printed.

Parts list (PDF) or CSV for a spreadsheet

Print

Printed parts
PartQtyMaterialEach (estimate)

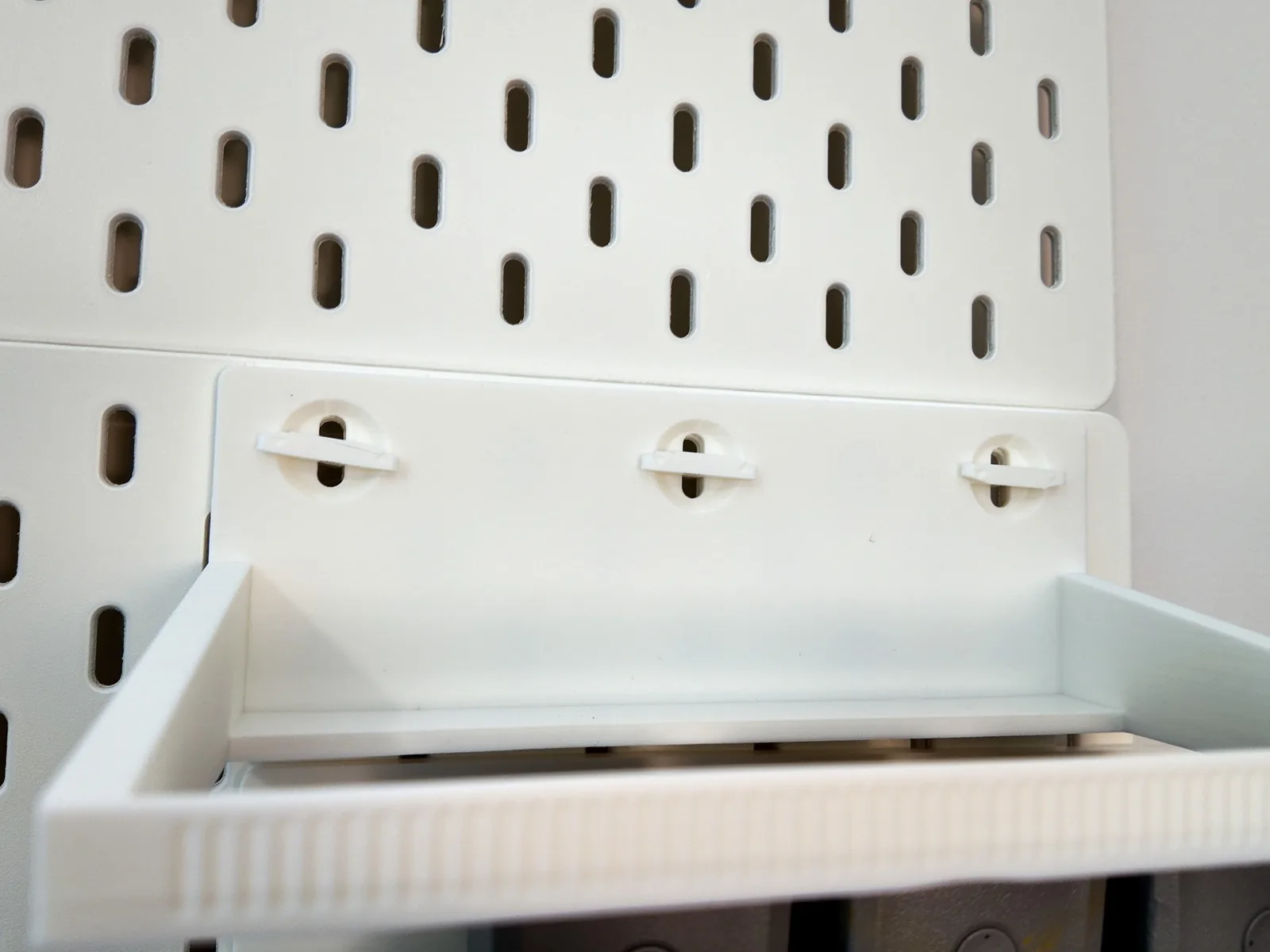

Air 2S Sledfloor down1PLA130 g · 3 h 13 min

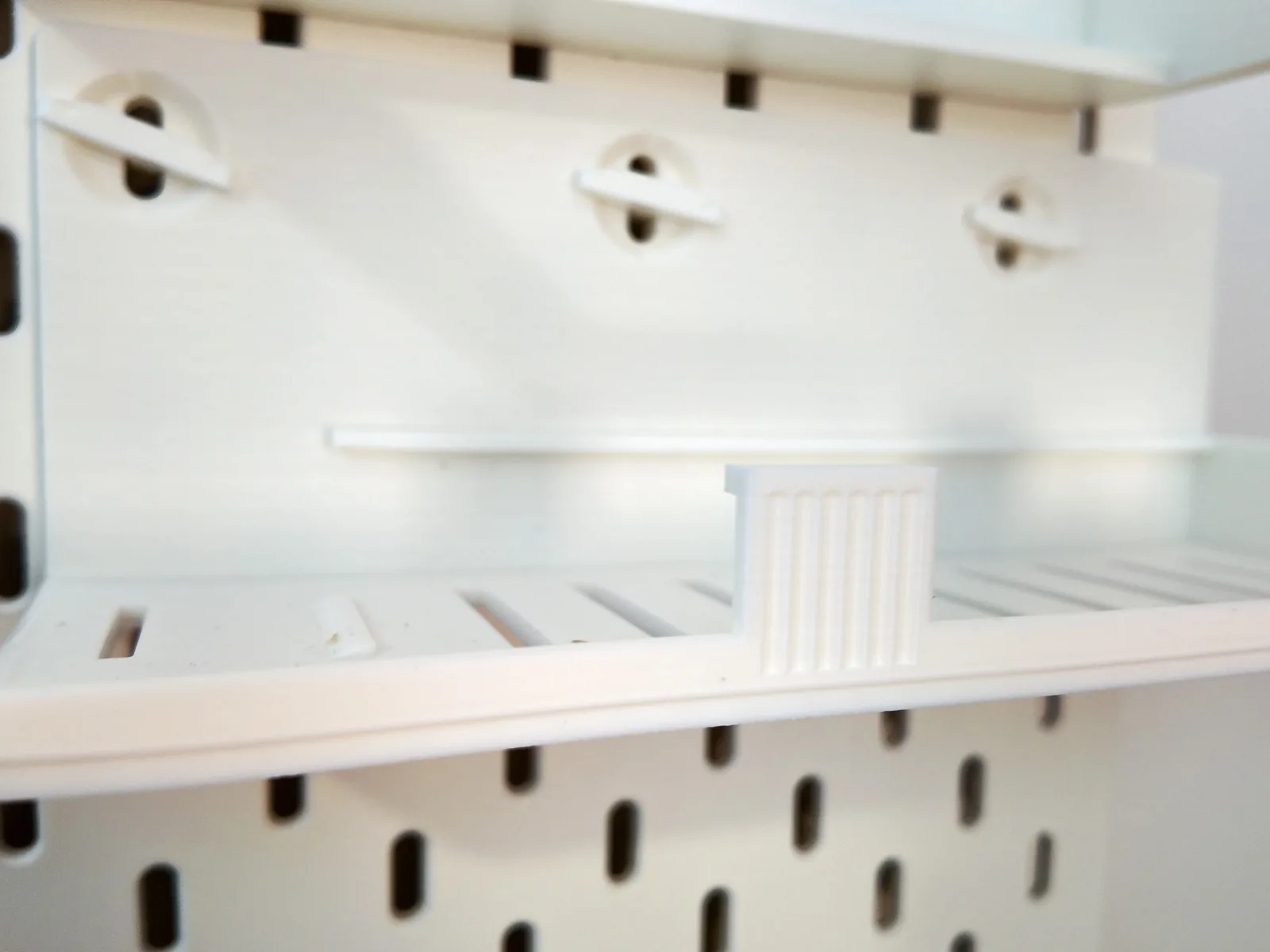

Hub Dockfloor down1PLA152 g · 3 h 40 min
RC Cradlefloor down1PLA88 g · 2 h 23 min
Hub Fit CouponRecommended firstfloor down1PLA14 g · 35 min
Twist Keyflat9PLA1 g · 11 min

About 11 h 28 min and 395 g of PLA for the whole set (Bambu Studio estimate).

Not printed

Parts that are not printed

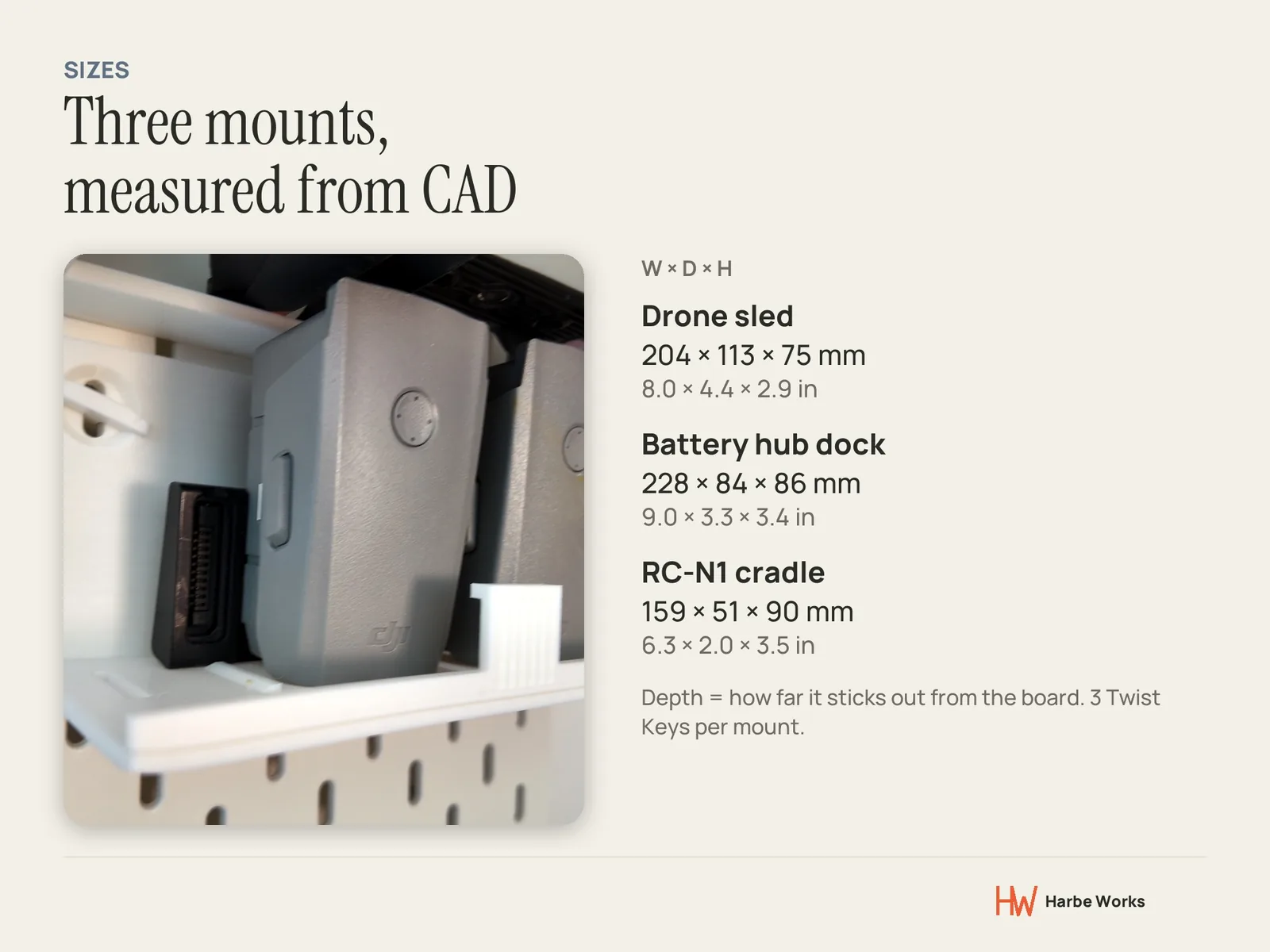

IKEA SKÅDIS pegboard (any size)Yes: Not included. The three mounts need 3 slot columns each, 160 mm wide.1
DJI 3-battery charging hub + its cableYour own: Not included; the dock is sized for DJI's flat hub.1
DJI Air 2S, RC-N1Your own: Not included.1 each

Ready-made plates

Bambu Studio plates in the pack
PlateOn itTimeFilament
Plate 1Air 2S Sled, Hub Fit Coupon, Twist Key ×33 h 45 min148 g
Plate 2Hub Dock, RC Cradle5 h 40 min240 g
Plate 3Twist Key ×626 min7 g

Bambu Studio estimates for an A1 with a 0.4 mm nozzle and 0.20 mm layers; plates pack parts together, so they differ a little from the per-part sums.

02 / The files

Get the files: $4.99.

One ZIP, v1.1.0. Personal, non-commercial licence.

$4.99Digital download · STL + STEP · instant

Secure checkout by Stripe. Your download links appear right after payment and work for 24 hours. Terms of sale · Refunds.

What's in the pack

  • STL of every part, already in print orientation (digital edition with a small cut-in HW mark)
  • STEP of every part, for remixing
  • Bambu Studio 3MF plates for the A1 (0.4 mm nozzle): PLA, 0.20 mm, no supports
  • Illustrated guide (PDF) with real photos of our prints: print settings, the Twist Key, mounting, troubleshooting, care
  • Material Guide (PDF): PLA vs PETG vs PCTG, colours and brands, grams and time per part, fit tolerances
  • Bill of materials (CSV + PDF), README, LICENSE, CHANGELOG

Mounting

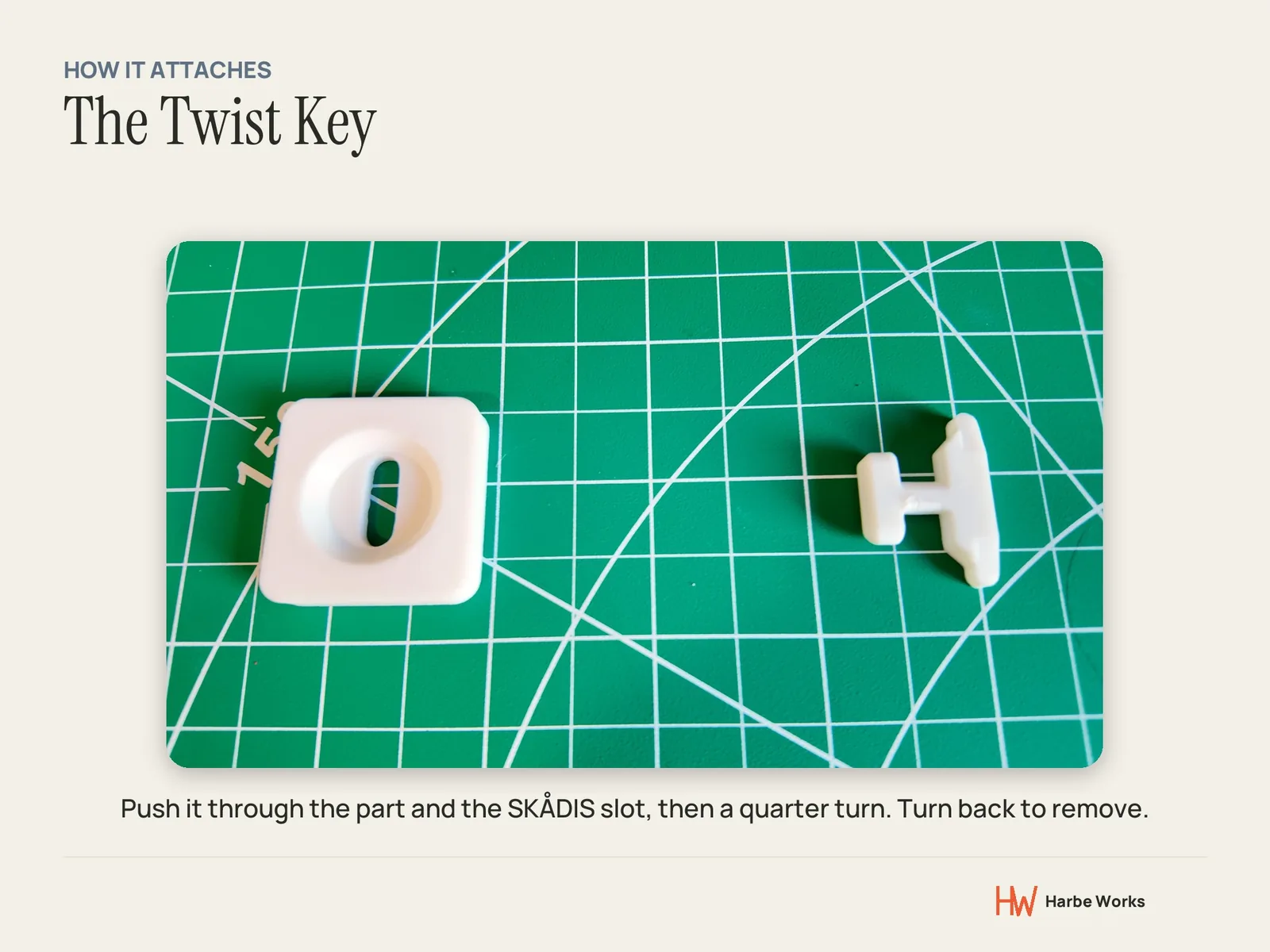

  1. Hold the mount on the board with each socket over a SKÅDIS slot.
  2. Push a Twist Key, wings vertical, through the socket and the slot behind it.
  3. Turn it a quarter turn counter-clockwise until it stops. The bar locks behind the board and the shoulder wedges the mount tight.
  4. Turn it back to take the mount off. No tools, no glue.
03 / Print notes
  1. Print at 100 % in millimetres with X-Y hole and contour compensation at 0. Every part is already in print orientation: no supports.
  2. PLA is what we print and photograph. PETG and PCTG should work but are not tested by us (see the Material Guide).
  3. Print one Twist Key first (11 minutes) and try it on your board before the big parts.
  4. Turn on elephant-foot compensation: a flared first layer is the usual reason a key or device feels tight.
  5. Print the Hub Fit Coupon (35 min) and slide your hub in before printing the dock.
  6. Stow the RC-N1 sticks before docking the controller.
04 / Honest status

What we verified.

Verified = shown by our own prints and photos, October 2026. Everything else is calculated from CAD and published sizes.

Verified with our prints

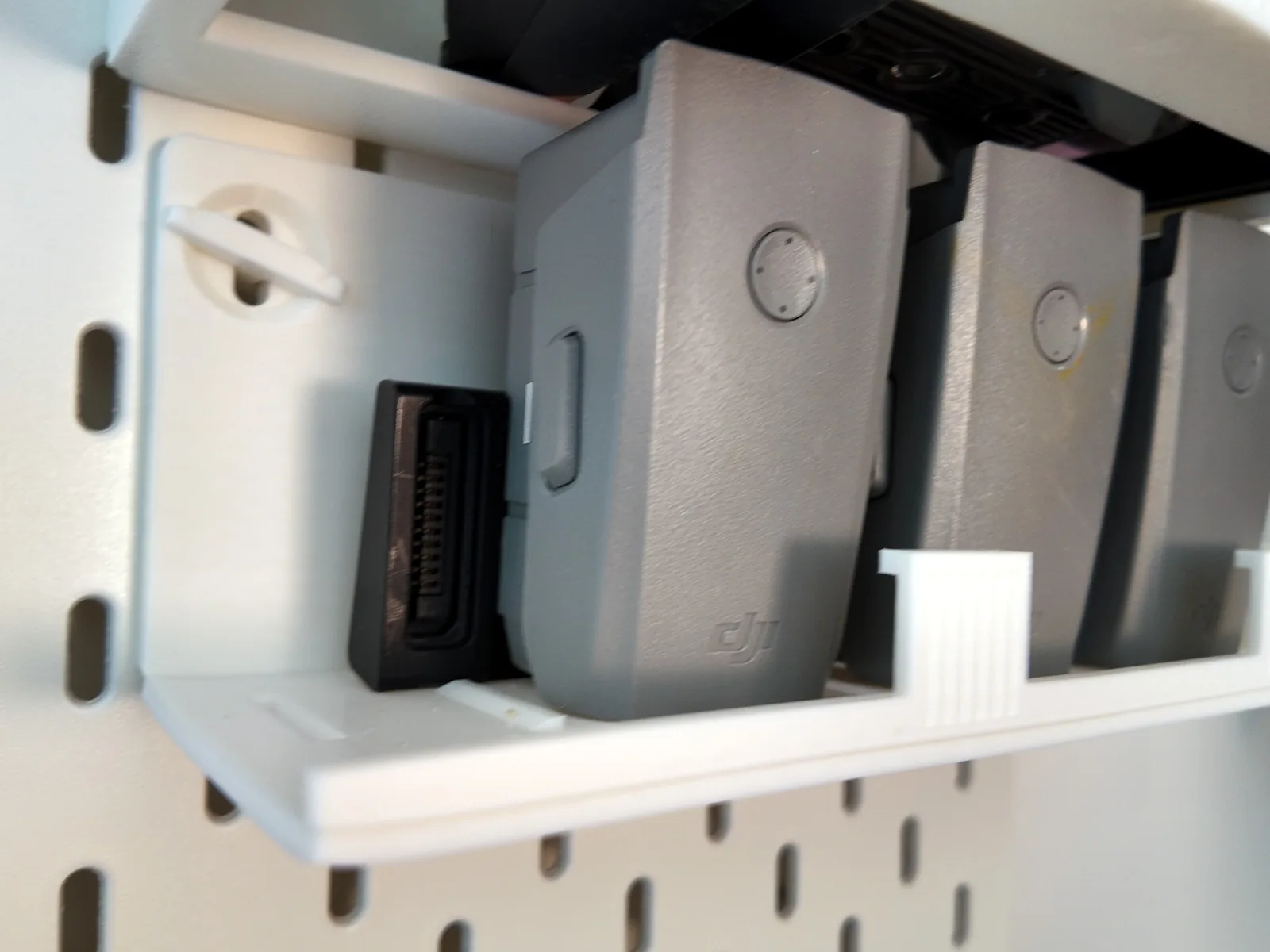

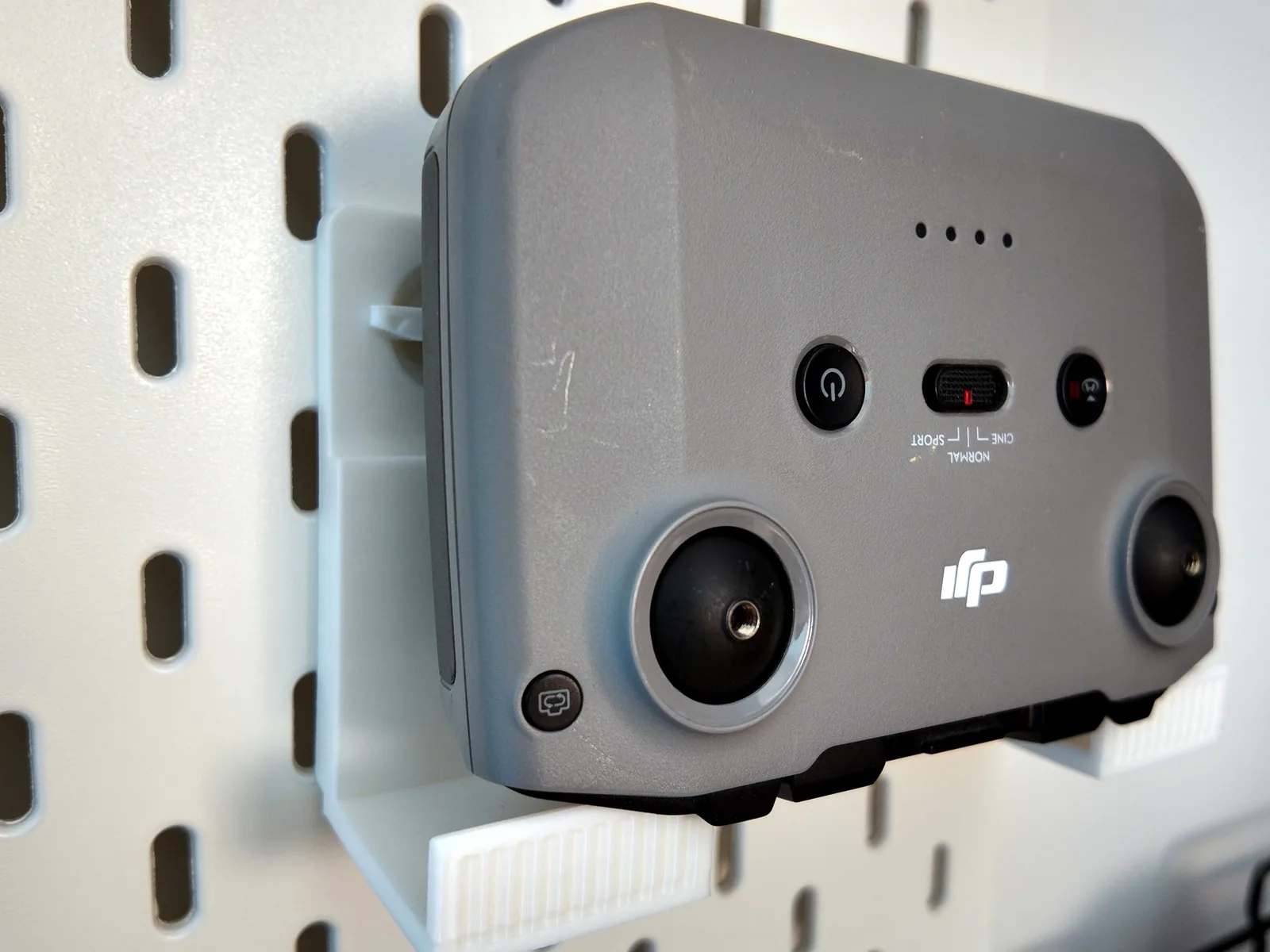

  • All three mounts printed in PLA from these files and used on our own SKÅDIS board: the folded Air 2S on the sled, the 3-battery hub with 3 batteries in the dock, the RC-N1 in its cradle (photos).
  • Twist Key: printed in PLA and used on our own SKÅDIS board; it locks in snugly with a quarter turn.

Calculated / not yet printed

  • Charging the batteries while docked (cable through the floor slot): designed for it, not checked by us.
  • Load, drop and long-term creep tests: not done.
05 / Questions

Good questions.

Something else? Email help@harbeworks.com.

Is this a physical item?

No. It is a digital download: one ZIP with the print files and guides. Nothing is shipped. You need a 3D printer (or a print service).

Which printers does it work with?

Any FDM printer that prints PLA. The 3MF plates are set up for a Bambu Lab A1 with a 0.4 mm nozzle; on another printer use the STLs with the settings in the guide.

Do I need screws or tools?

No. Each mount hangs on IKEA SKÅDIS with our printed Twist Keys: push through, quarter turn, done.

Can I sell prints or share the files?

No: the licence is personal, non-commercial use. Please link people to this page instead. A printed version is in our Etsy shop.

What if a fit is off on my printer?

Email help@harbeworks.com with your printer, filament and a photo. The guide has a troubleshooting table, and fit tests are included where a device needs one.

Does it fit other drones?

It is sized for the Air 2S, its flat 3-battery hub and the RC-N1. Other drones and the DJI RC were not designed for or checked.

06 / Licence

For you, with a few rules.

Personal, non-commercial use: print and use the mounts for yourself. Do not share, re-upload or sell the files or printed parts. Full text in LICENSE.txt in the ZIP.

DJI, Air 2S, RC-N1, Osmo Pocket 3 and Mic 2 are trademarks of SZ DJI Technology Co., Ltd., used only to describe fit. IKEA and SKÅDIS are trademarks of Inter IKEA Systems B.V. Harbe Works is independent and not affiliated with or endorsed by DJI or IKEA.

Read the full licence summary

Ready to print one?

Check the free parts list, then print a fit test first. Everything we have verified is marked.
